Место происхождения: | Китай |
---|---|
Фирменное наименование: | RVYUAN |
Сертификация: | ISO9001/ISO14001 /UL/SGS |
Номер модели: | USTC |
Количество мин заказа: | 10 кг |
Цена: | negotiable |
Упаковывая детали: | Коробка с картонной карточкой |
Время доставки: | 2-15 рабочих дней |
Условия оплаты: | Переговоры |
Поставка способности: | Удовлетворить ваш спрос |
Diameter: | 0.1mm | Temperature: | 155/180 |
---|---|---|---|
Сертификация: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
Conductor: | Copper | Strands: | 200 |
Breakdown voltage: | 1300 | Insulation: | UEW |
Product name: | 0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire | Key word: | 0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire |
Выделить: | 200 Twisted Enameled Litz Wire,0.1mm Enameled Litz Wire,Multi Strands Enameled Litz Wire |

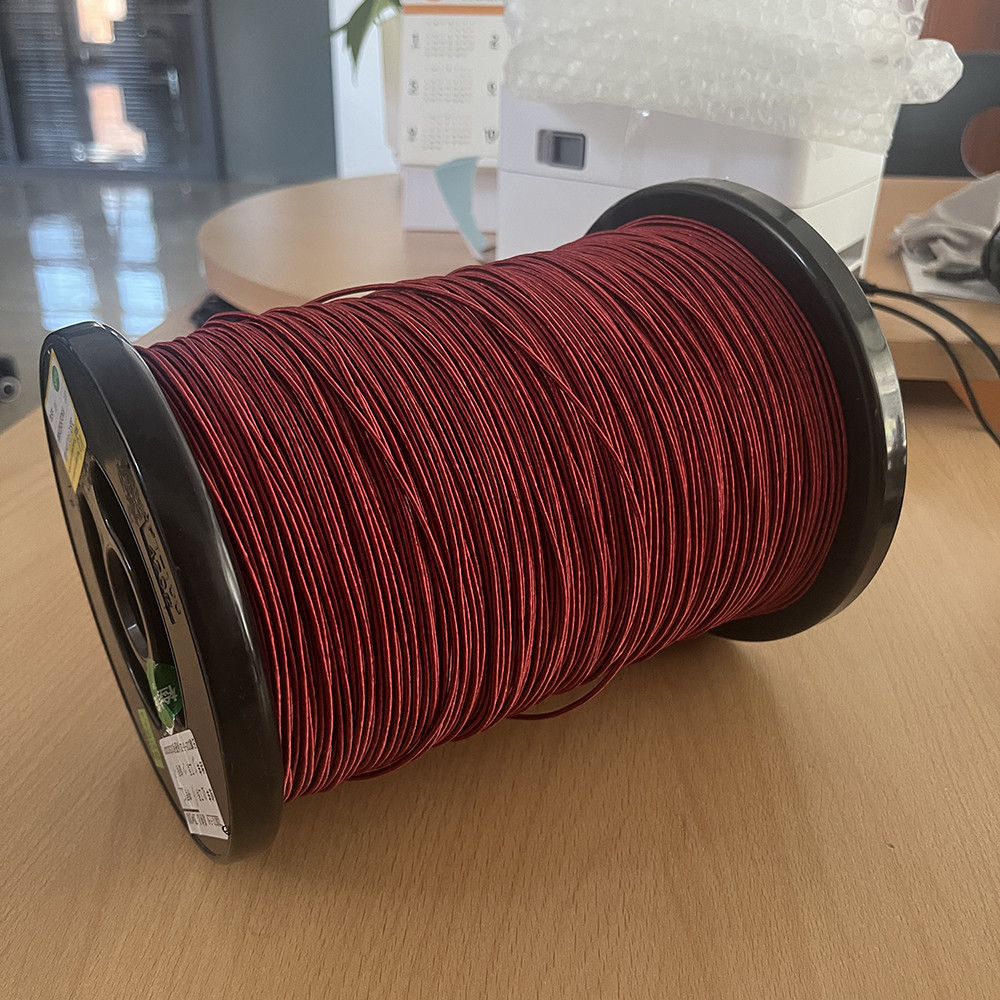

0.1mm*200 Multi Strands Twisted Enameled Copper Litz Wire
One of the great benefits of our Litz wire is its flexibility in strand count. With strand counts ranging from 2 strands up to 12,500 strands, you can tailor the wire to the exact needs of your project. This flexibility ensures optimal performance during transformer winding, as strand count significantly affects the efficiency and effectiveness of the winding process. By choosing our Litz wire, you can ensure your transformer operates at peak performance, minimizing energy losses and maximizing output power.
Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
Item | Standard | Test result |
Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
Pitch(mm) | 29±5 | √ |
Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
Breakdown voltage Mini (V) | 1100 | 3000 |
