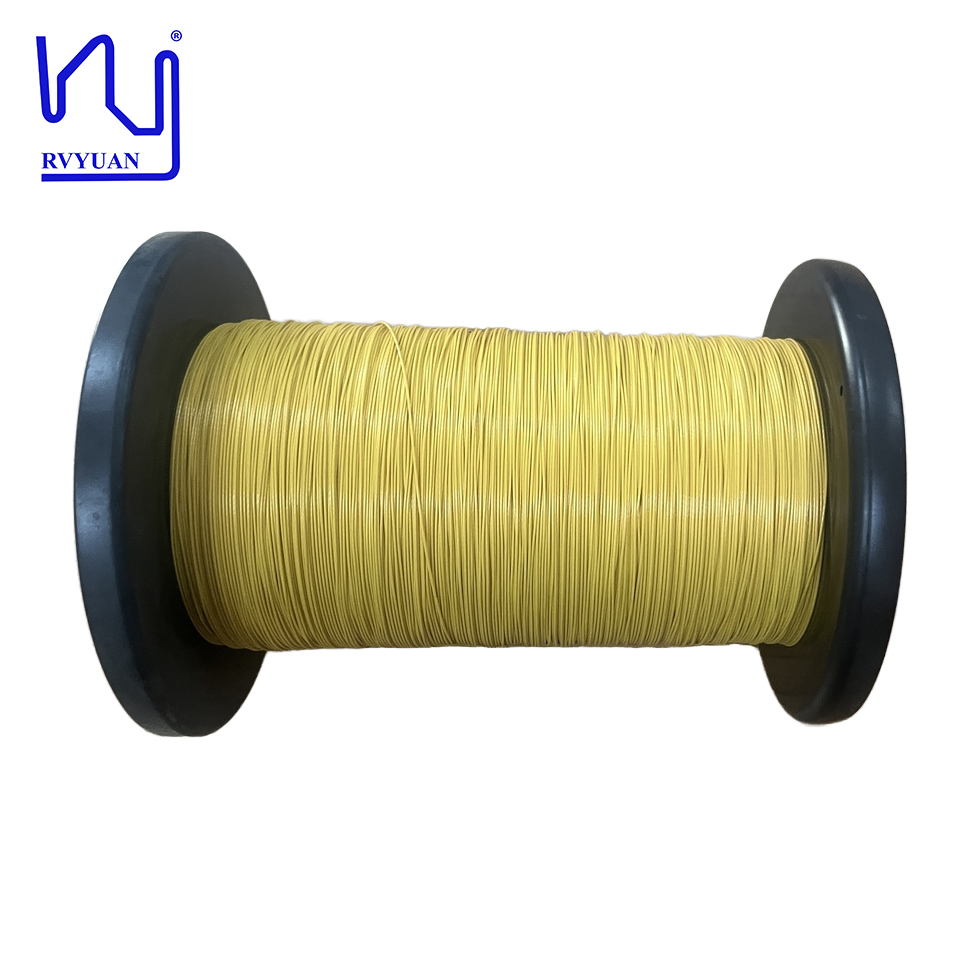

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire

Основная информация
Место происхождения: КИТАЙ
Фирменное наименование: RVYUAN
Сертификация: UL/ISO9001/ISO14001/RoHS/Reach
Номер модели: 0.24mm
Количество мин заказа: 1000 метров
Цена: negotiable
Упаковывая детали: Картон
Время доставки: 7 дней
Условия оплаты: T/T/PayPal
Поставка способности: 1ton/month
Подробная информация
Название продукта: Custom ETFE Etemended Litz провода 0,24 ммхс7 нити TIW для трансформатора Тепловая номинация: 155
Диаметр единого провода: 0.24mm Материал дирижера: Медь
Количество прядей: 7 Insualtion: ETFE
Выделить:

ETFE insulated copper litz wire

,

0.24mm 7-strand litz wire

,

TIW stranded copper wire


Характер продукции

Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire
ETFE insulation offers numerous advantages, including exceptional toughness, high strength, and superior electrical properties. Its ability to withstand extreme temperatures (up to 155°C) ensures the wires operate effectively in a variety of harsh environments. ETFE is also renowned for its excellent resistance to chemicals and UV radiation, further enhancing its durability and longevity.
Characteristics Test Standard Test result
Min. insulation thickness Mm(min)0.11 0.120 0.127 0.120
Pitch 12±2 ok ok ok
Single wire Diameter 0.24±0.003MM 0.239 0.240 0.240
Overall dimension / 1.03 1.05 1.05
Conductor Resistance Max. 59.18Ω/KM 56.04 56.12 56.10
Breakdown voltage Min. 6KV(min) 15.2 14.4 14.8
Solder ability 400℃ 3Secs OK OK OK
Conclusion Qualified
Class 155 ETFE insulated Copper Litz Wire 0.24mmx7 Strands TIW Stranded Wire 0
We have a professional team to provide technical support. Custom specifications available upon request.
