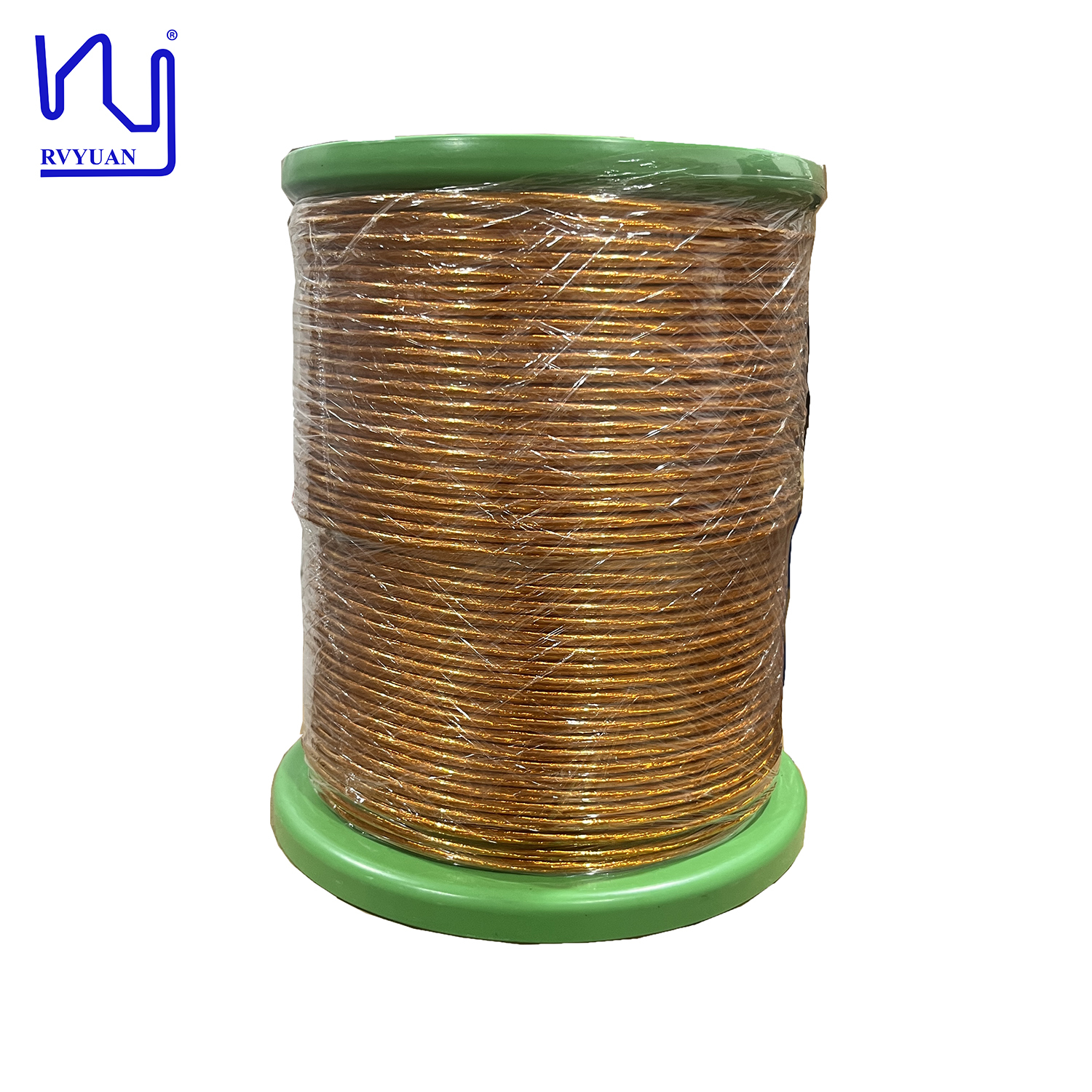

0.4mm High Frequency and Temperature Taped Mylar Litz Wire

Основная информация

Место происхождения:	Китай
Фирменное наименование:	Rvyuan
Сертификация:	IEC/NEMA/JIS/RoHS/ISO
Номер модели:	связанный тесьмой провод litz

Количество мин заказа:	20 кг
Цена:	negotiable
Упаковывая детали:	Катушка с коробкой
Время доставки:	2-15 рабочих дней
Условия оплаты:	Переговоры
Поставка способности:	Удовлетворить ваш спрос

Лучшая цена Контакт

Подробная информация

имя:	Майларовый многожильный провод с высокочастотной и температурной изоляцией 0,4 мм	Сертификация:	ISO9001/ISO14001/UL/SGS
Диаметр:	0,4 мм	Проводник:	Медь
Изоляция:	Фильм PI	Номинальная температура:	180
Ключевое слово:	Майларовый многожильный провод с высокочастотной и температурной изоляцией 0,4 мм	Количество прядей:	120
Выделить:	0.4mm high frequency Mylar Litz wire , temperature taped copper Litz wire , Mylar insulated high frequency wire

Характер продукции

0.4mm High Frequency and Temperature Taped Mylar Litz Wire

Taped litz wire refers to litz wire that is wrapped tape, typically to enhance its performance and durability in various applications. Litz wire itself is made up of many thin strands of enameled copper wire twisted together. This design helps reduce skin effect and proximity effect losses in high-frequency applications, making it ideal for use in transformers, inductors, and other electromagnetic devices.

Benefits of Taped Litz Wire

Insulation: Taping provides additional insulation between the individual strands of wire, which can help prevent short circuits and improve the overall safety of the wire.
Mechanical Protection: The tape can protect the wire from physical damage, abrasion, and environmental factors, extending the lifespan of the wire in harsh conditions.
Ease of Handling: Taped litz wire is easier to handle and work with during assembly, as the tape helps keep the strands together and organized.
Reduced Stray Capacitance: In some cases, the tape can help reduce stray capacitance between the strands, which can be beneficial in high-frequency applications.
Improved Performance: By maintaining the integrity of the litz structure, taping can help ensure that the wire performs optimally, especially in applications where minimizing losses is critical.

Overall, taping litz wire enhances its functionality and reliability in various electrical and electronic applications.

Outgoing Test Specifications

Item	Standard	Test Result
Outer conductor diameter (mm)	0.068-0.081	0.068-0.071
Conductor diameter (mm)	0.06±0.003	0.056-0.060
Overall diameter (mm)	Max.1.86	1.68-1.82
Pitch (mm)	29±5	17
Max resistance (Ω/m at 20℃)	Max. 0.01809	0.01573
Breakdown voltage Mini (V)	6000	13700
NO. Of strands	385	77x5
Tape overlap %	Min.50	53

Product Images
