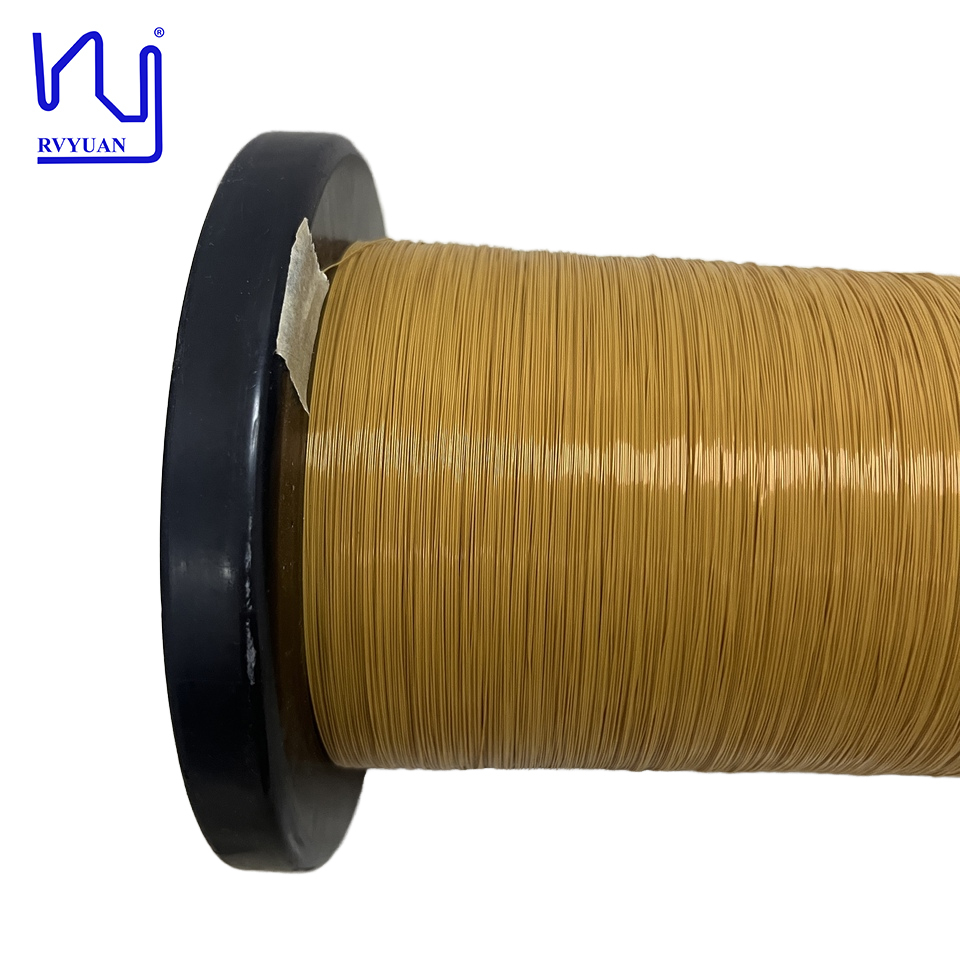

UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire

Основная информация

Место происхождения:	Китай
Фирменное наименование:	RVYUAN
Сертификация:	UL/ISO9001/ISO14001/RoHS/Reach
Номер модели:	0,15 мм

Количество мин заказа:	3000 метров
Цена:	negotiable
Упаковывая детали:	коробка
Время доставки:	7 дней
Условия оплаты:	T/T/PayPal
Поставка способности:	1ton/month

Лучшая цена Контакт

Подробная информация

Название продукта:	Сертифицированный UL медный провод с тройной изоляцией класса F, желтый провод 0,15 мм с изоляцией T	Тепловая номинация:	155
Диаметр единого провода:	0,15 мм	Материал проводника:	Медь
Insualtion:	ETFE
Выделить:	UL certified triple insulated wire , Class F yellow TIW wire , 0.15mm insulated copper wire

Характер продукции

UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire

ETFE (ethylene-tetrafluoroethylene copolymer) triple insulated wires offer numerous advantages, making them ideal for a wide range of electrical applications.

ETFE exhibits excellent thermal stability, enabling the wires to operate efficiently at high temperatures without performance degradation.
ETFE provides excellent chemical resistance, effectively protecting the wires from corrosive chemicals and environmental factors.
The lightweight nature of the ETFE insulation helps reduce the overall weight of electrical systems.
The triple-insulation design further reduces the risk of short circuits, ensuring safer operation.

ETFE triple-insulated wires combine durability, safety, and efficiency, making them the preferred choice for modern electrical applications, including transformers and other high-performance equipment.

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
