2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire

Основная информация
Место происхождения: Китай
Фирменное наименование: RVYUAN
Сертификация: ISO9001/ISO14001 /UL/SGS
Номер модели: USTC
Количество мин заказа: 10 кг
Цена: negotiable
Упаковывая детали: Коробка с картонной карточкой
Время доставки: 2-15 рабочих дней
Условия оплаты: Переговоры
Поставка способности: Удовлетворить ваш спрос
Подробная информация
Diameter: 0.1mm Temperature: 155/180
Сертификация: IEC/NEMA/JIS/RoHS/ISO AWG SIZE: 38
Conductor: Copper Strands: 200
Breakdown voltage: 1300 Insulation: UEW
Product name: 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire Key word: 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire
Выделить:

0.1mm Stranded Wire

,

2USTC-F Copper Litz Wire

,

Red Silk Litz Wire


Характер продукции

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire



Silk covered Litz wire is designed to minimize eddy current losses, which are critical in transformer winding. Silk covered Litz wire is an indispensable component for engineers and manufacturers seeking to improve transformer performance and reliability. The combination of Silk covered Litz wire and Litz wire technology not only improves electrical performance, but also helps extend the life of the winding, making it a smart investment for any project.



Outgoing test of stranded wire Spec: 0.1x200 Model: 2USTC-F
Item Standard Test result
Outer conductor diameter(mm) 0.107-0.125 0.110-0.114
Conductor diameter(mm) 0.10±0.003 0.0980-0.10
Overall diameter (mm) Max.1.98 1.75-1.85
Pitch(mm) 29±5
Max resistance (Ω/m at20℃) Max. 0.01191 0.01088
Breakdown voltage Mini (V) 1100 3000

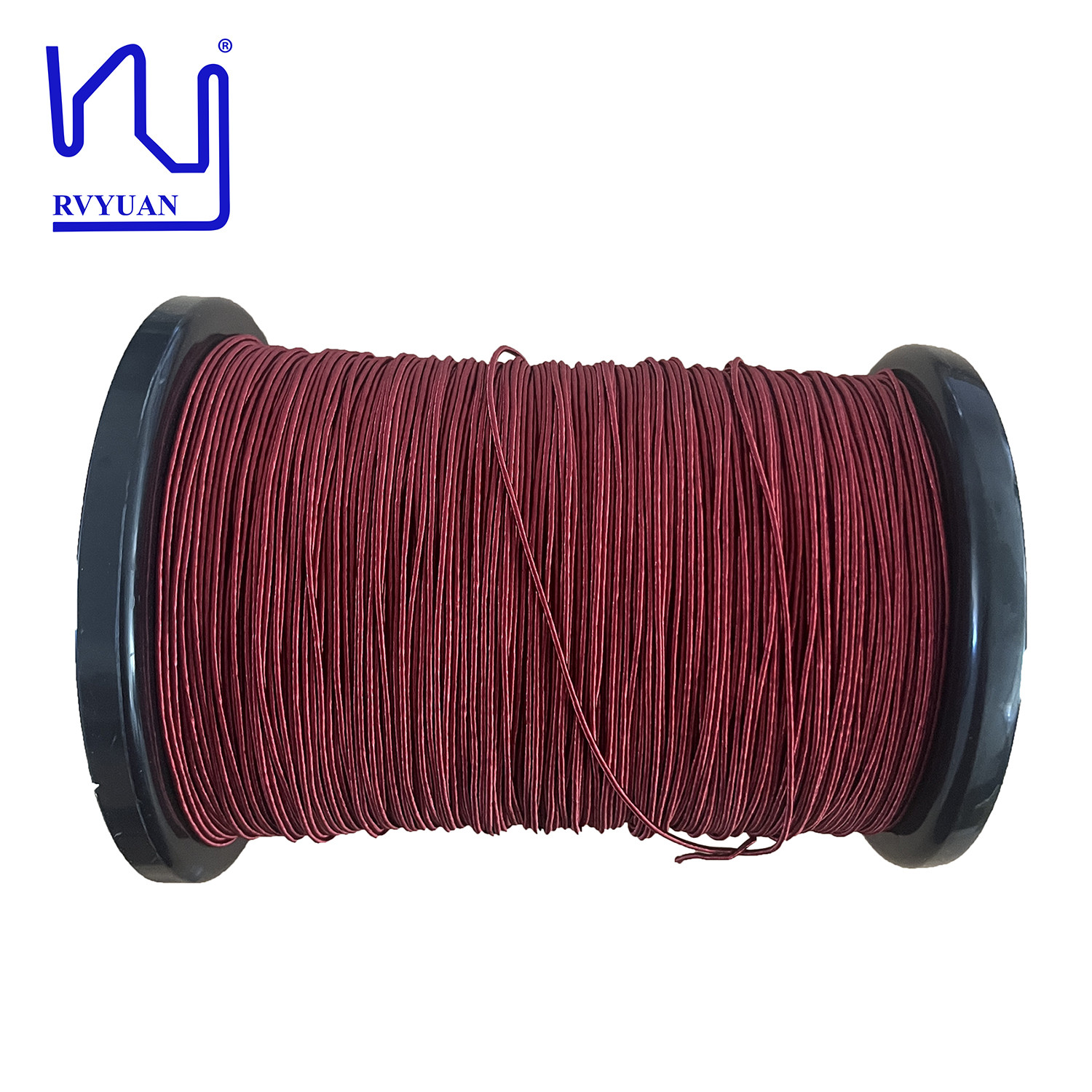

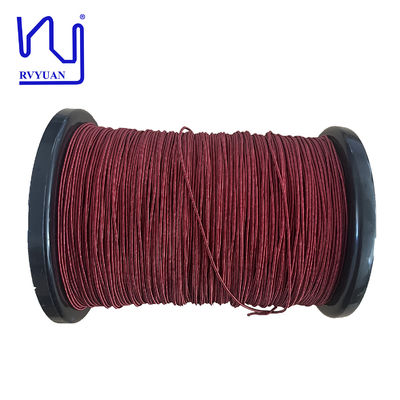

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire 02USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire 1
