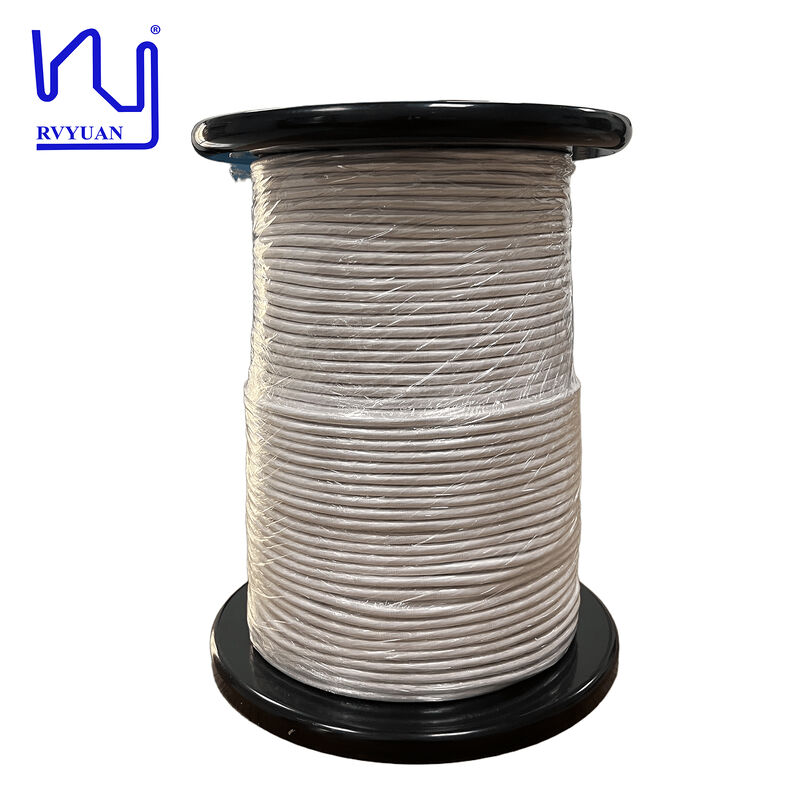

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire

Основная информация

Лучшая цена Контакт

Подробная информация

Диаметр:	0,2 мм	Температура:	155
Сертификация:	IEC/NEMA/JIS/RoHS/ISO	Дирижер:	Медь
Пряди:	300	Напряжение пробоя:	Мин.1400
Материал покрытия:	Нейлон	Ключевое слово:	Высокочастотный многожильный провод 0,2 мм x 300, медный многожильный провод
Выделить:	0.2mm high frequency Litz wire , 300 strand copper Litz wire , high frequency stranded copper wire

Характер продукции

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire

Product Overview

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire is engineered for high-frequency applications requiring optimal performance and reliability.

Main Application Areas

High-frequency inductors and transformers
Switching Power Supply (SMPS): Especially suitable for high-frequency flyback, forward, and LLC resonant transformers
Wireless charging coils: Used in smartphones, wearable devices, etc., with operating frequencies ranging from hundreds of kilohertz to megahertz
RF inductors: Used for resonance and filtering in RF circuits

Test Report & Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.216-0.231	0.2±0.003	Max. 5.21	≤0.001924	≥1600	130±20
Sample 1	0.05	0.198-0.20	4.53-4.85	0.001821	400	√

Technical Specifications
